[Guide] Black Desert Server Running + Configuration

Post by ASHE » Mon Jun 28, 2021 4:15 pm

first shoutout to Ledie for the files and the amazing work did.

Things we need before we start digging:

  • Server and Client can be found HERE (more links will be added later)
  • We need Navicat HERE free? HEREthanks to Bobthedrag in discord for the link!!
  • 7z HERE or any good alternative.

Getting Started:
before we start we need to add Java_Home like what we did with Aion guide

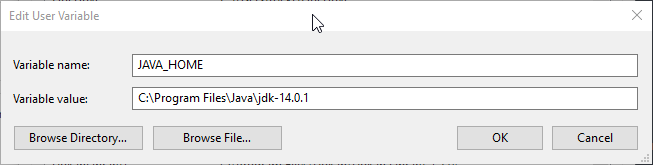

add new (or edit if you have one already) in User Variables Window and type in the Variable Name: JAVA_HOME
Click on the Browse Directory and pick where is Java14 is in your system as for me it's C:\Program Files\Java\jdk-14.0.1
remeber to add them in both User Variabales and System Varibales.

After we done with Java Varibales we extract the server and client files in root drive i.e. D:\BDServer\Server and D:\BDServer\Client


Database Setup:
we start 1-Database.bat to start mongod database
after that going to Navicat

fill the information as follows

for the Database data go to
D:\BDServer\Server\gameserver\bin\data\sqlite3\bdoOLD.sqlite3
drag the file bac.sqlite3 inside Navicat now you have the data for the server like the pearl shop items or itemdrops.

setup the Server:
before we start the server we need to setup the server IP to your IPv4 to get the ip simply run command prompt in windows and type ipconfig
in my case it's 192.168.8.101 and replace it wih IPv4 bellow
D:\BDServer\Server\gameserver\bin\configs\network.properties
Change

Code: Select all

network.rmi.host = IPv4
and

Code: Select all

network.host = IPv4
D:\BDServer\Server\gameserver\bin\configs\server.properties
change

Code: Select all

server.ip = IPv4
D:\BDServer\Server\loginserver\bin\configs\network.properties
Change

Code: Select all

network.rmi.host = IPv4
and

Code: Select all

network.host = IPv4
D:\BDServer\Cient\service.ini
change

Code: Select all

AUTHENTIC_DOMAIN=IPv4
Starting the Server:
if 1-Database.bat already started that's good now run 2-loginserver.bat and 3-GAMESERVER.bat
wait a couble of seconds maybe minutes depends on your computer.
you will know the server is started when you see in the LoginServer window a message like:

Code: Select all

INFO  - Gameserver [Serendia] registered successfuly with ServerID=1 and ChannelID=1.

game is ready to start. just start the launcher BDO Launcher.exe
enter any username and password it will autocreate the account.

Common issues

stuck in processing after starting the client
that's because there is no account with the giving information simply go to D:\BDServer\Server\loginserver\bin\configs\login.properties
and change

Code: Select all

login.autoregistration.accounts = true
Game crash after selecting a server
u didn't change D:\BDServer\Server\gameserver\bin\configs\server.properties

Code: Select all

server.ip = IPv4
{more to add when i find issues}


Questions & Answers

how to set my self as an admin?

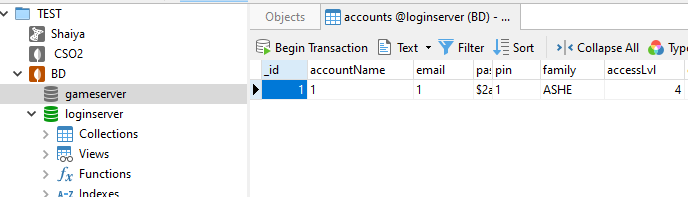

after creating the account and character go to Database then open loginserver tables accounts after that pick the account you want to set as an admin change accesslvl to 4 (admin)
(0) Player (1) Tester (2) Moderator (3) GameMaster (4) Admin

remeber to save the table when finish editing (usually Ctrl+S)

how to give my self items?
if u are accesslvl 2 or up you can by using .bag add [itemId] [count]
ID's can be found in BD database HERE

how about commands?
HERE


{more to add when i find more questions}
